The mobile workstation for manual material application

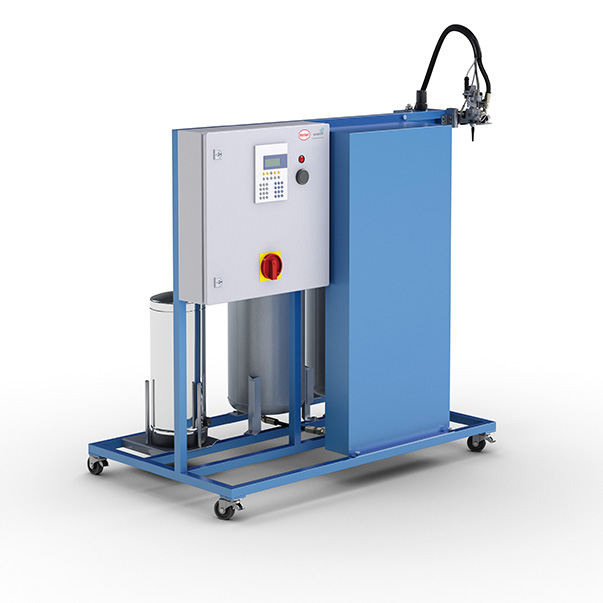

The DM 70 COMPACT is a low-pressure mixing and dosing machine for the processing of one or two components in manual operation for sealing, bonding and potting. This machine precisely processes and doses liquid, medium and high viscosity compounds such as polyurethanes, silicones, epoxy resins or other polymeric reactive materials.
Simple processing
The DM 70 COMPACT allows the operator to perform diverse programming tasks safely and easily with a 7’’ touch screen. The DM 70 COMPACT is based on a non-recirculating system with continuous material dosing by utilizing precision gear pumps. The processed materials are mixed either with the dynamic mixing head MK 50 or alternatively the static mixing head MK 20. All machine components are placed on a mobile chassis enabling easy access to the machine and allowing fast and comfortable completion of service and maintenance work.
Guaranteed quality
The DM 70 COMPACT mixing and dosing machine processes the used materials with reliable and consistently high production quality.
The machine control allows the operator to store and monitor the main material-processing parameters, such as material reactivity data.
In addition, parameters for rinsing or repeat shot dosing and dosing time can be programmed, as well as the material feed quantity and mixing ratio can be variably set.
Flexible today, flexible tomorrow

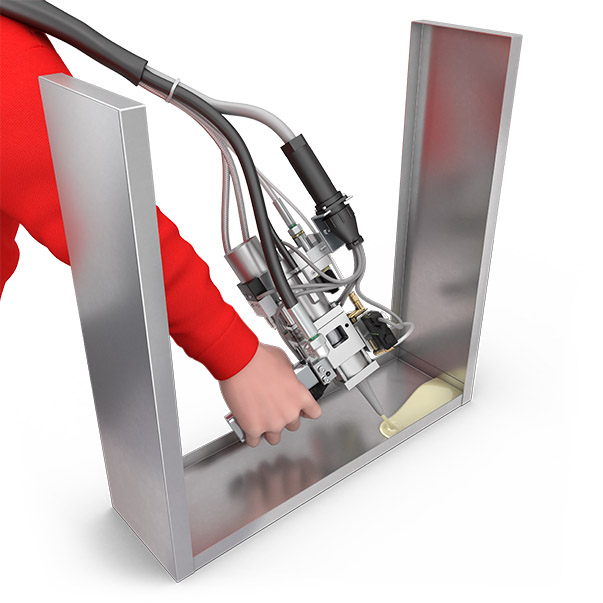

The DM 70 COMPACT for the processing of one or two components permits the manual application of a wide range of materials by means of a handheld pistol, consisting of either the MK 20 or MK 50 mixing head.
It is a mobile stand-alone system that can be used in your production in a space-saving manner. Functional design, proven technology and reliable processes guarantee the profitability of your investment.
Henkel is the system supplier for polymeric sealing and potting systems.
From us, you get the dosing technology AND the application-specific chemistry from one source – tailor-made for your process and from our own development and production!
The knowledge consistently acquired over many years, as well as more than 1,000 recipes are the guarantee for optimal customer orientation, tailor-made products and market-driven solutions for your industry as well.
Henkel masters the interplay of material and machine, combining chemical-technical expertise with creative engineering in the fields of sealing foams, bonding and potting. Whether for fully automated inline production systems or manually operated stand-alone systems such as the DM 70 COMPACT, Henkel products always stand for precise, reliable and easy-to-operate production processes.
And so, with the DM 70 COMPACT, too, the sophisticated operating concept is the key to the consistently high quality of the dosed sealing and potting materials.
|
|
| Size | 0.1 / 0.12 / 0.25 / 0.3 / 0.52 / 0.6 / 1.0 / 1.2 / 2.0 / 3.0 / 4.0 / 6.0 / 8.0 / 12.0 / 16.0 / 20.0 ccm/R |
|---|---|
| Special pumps | available on request |
| Length 3 m, with all electrical and pneumatic connections | |
|---|---|
| A-components | textile-reinforced polyamide high-pressure hose |
| B-components | steel-reinforced PTFE high-pressure hose |
|
| Electrical system | according to EN 60 204 - 1 |
|---|---|
| Electrical power supply | 3 x 400 V, 50 Hz |
| Rated power | approx. 4 kVA (basic version)) |
| Average consumption | approx. 2 kVA (basic version)) |
| Compressed-air | 100 – 550 l/min bei 6 – 7 bar |
| Tank and pump chassis: |
1,400 x 1,300 x 850 mm W/H/D |
|---|---|
| Switch cabinet: |
600 x 600 x 210 mm W/H/D; with voltage adjustment 600 x 800 x 250 mm W/H/D |
| Total weight: | approx. 400 kg |
| Mixing ratio | from 100 : 5 to 1 : 1, infinitely variable |
|---|---|
| Output quantity | from 0.1 to 100.0 g/s, other output quantity on request |
| Viscosity processing range | from 100 to 2,000,000 mPas, other viscosities on request |
| Chassis: | design in shaped tubular-steel welded frame, painted RAL 5015 |
Control
- Display languages available in English, German French, Spanish, Italian
- Strand identification
- Operating hours counter
- Voltage adaptation to different power-supply ratings, 60 Hz version
Material preparation
- Material pressure tank with capacitive minimum fill level sensors, shut-off ball valve, with compressed air fittings and compressed air reducer valves for pre-pressure control of the tank pressures
- Safety pressure valve (TÜV type approved)
- 24 L or 44 L material pressure tank, single-walled, stainless steel
- 44 L material pressure tank, double-walled, stainless steel
- 19 L tank for cleansing agent, with safety valve and minimum-level monitoring
- Wire mesh filter cartridges and plate disc filter
- Three-phase agitator with 23 rpm or alternatively 95 rpm
- Electric heating for single-walled tanks
- Temperature control for double-walled tanks
- Manual vacuum degassing
- Prepared to control an automatic refill station
- Material supply by refill station for containers from 20 to 200 liters
Quality assurance
- Maintenance unit for monitoring of compressed-air supply
- Pressure monitoring of the components
- Additional quality assurance devices are adaptable according to customer requirements
Hose Package
- Electrically heated hoses with steel-reinforced PTFE high-pressure hose core
- Double-walled medium heated hose with PTFE high-pressure hose core
Mixing head VARIANTS
- 1K application valve
- MK 20 with feed lines and static mixing
- MK 50 with feed lines and dynamic mixing, mixing chamber rinsing with chemical cleansing agents
General
- Rinsing and filling shot container
- Spare parts packages
- Material supply monitoring for component pumps
- Freestanding gallows with balancer for manual application
- Interface for external integration
- Compressed air dryer
- Transport, setup and instruction
