Compact, mobile, reliable and easy to operate

The mobile workstation for processing and dispensing of highly filled, abrasive and highly viscous LOCTITE 2K epoxy structural adhesives



The DM 80 STATIC MIX is designed to be used in various industrial sectors, such as aircraft construction, car body construction, commercial and special vehicles, agricultural machinery, defence, railway and mobile homes, to name a few.

Flexible today and tomorrow

The compact design of the DM 80 STATIC MIX fulfills all the technical and quality requirements of suppliers for aircraft construction and other industrial applications, where precise processing and dispensing of 2K materials, automation of manual processes as well as traceability of process sequences are crucial to the quality of component bonding.

Guaranteed quality

With the launch of the DM 80 STATIC MIX, we guarantee the quality you require.

The DM 80 STATIC MIX enables efficient material consump- tion and shorter production times, as well as higher quality, consistency and reliability in mixing and dosing. Additionally, it incorporates Industry 4.0 functionalities, a worldwide service network, and offers the possibility of integrating into your automation systems.





Simple processing and space-saving use

The DM 80 STATIC MIX is designed so that the operating personnel can fulfill the most diverse tasks easily and safely. Operation and visualization are carried out via a
15.6“ touchscreen.

A further feature is the process data logging, in which material pressures, pump torques, weighing data, correc- tion factors and alarm data are recorded and saved. In addition parameters for the discharge quantity, mixing ratio and the dosing time can be set. Particularly note- worthy is the interactive, menu-guided calibration and dosing process, which is permanently monitored and checked by a precision scale.

The dosing machine is mounted on a rollable chassis.

Spare mixing elements, separator for calibration, gloves and filling cups are within easy reach. The easy accessibility of the machine makes it quick and easy to carry out main- tenance and servicing work.





Animation of SONDERHOFF DM 80 STATIC MIX - Long Version









Animation of SONDERHOFF DM 80 STATIC MIX - Short Version

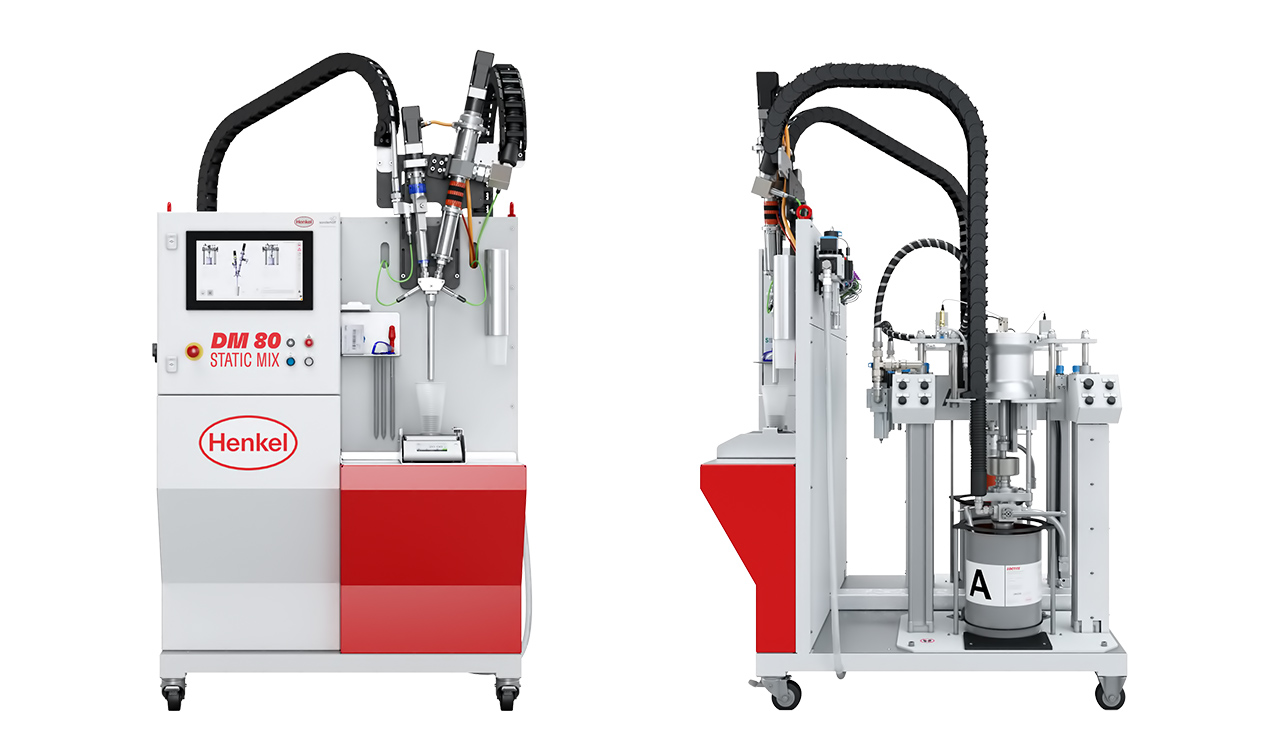

DM 80 STATIC MIX - Overview and special features



Touchscreen Process data logging Operating mode control panel Rollable chassis Precision eccentric screw pumps 2K precision mixing head with static mixing Integrated precision scale Accessories Pressure-controlled separator Cartridge filling Pressure gauge Compressed air connection Pail change Safety ram press Material tempering

Touchscreen

Visualization and operation via 15.6“ touchscreen with interactive menu- guided calibration and dosing process

Process data logging

of material discharge quantities, mixing ratios, material pressures, pump torques, weighing data, correction factors and alarm data

Operating mode control panel

with warning lights, key switch for preselecting the operating mode and EMERGENCY STOP shutdown

Rollable chassis

Dosing machine mounted on rollable chassis

Precision eccentric screw pumps

in sizes 8.2 ccm/rev (A comp.) / 1.8 ccm/rev (B comp.), with servo drives and automatic pressure control

2K precision mixing head with static mixing

with servo drives, for discharge rates infinitely variable from 1.0 to 2.5 g/s and mixing ratios from 10:1 to 1:1 (depending on pump size and material viscosity)

Integrated precision scale

for permanent weighing check for calibration and dosing

Accessories

such as spare mixing elements, separator for calibration, gloves and filling cups are immediately available

Pressure-controlled separator

for interactive, menu-driven calibration function

Cartridge filling

in 230 ml Semco cartridges (optional)

Pressure gauge

Setting and pressure display by means of pressure gauge for barrel pressing and aeration pressure

Compressed air connection

with filter pressure reducer and maintenance unit for supplying the pneumatic consumers

Pail change

easy to implement, with little material loss

Safety ram press

for conveying material from 20 liter pails and functions for automatic (de-)aeration

Material tempering

Four individually controllable heating circuits: Scoop piston pump, hose package, dosing pump and mixing head incl. support tube (only for A-component)





Mixing head with pressure monitoring
and flow-optimised material dosing





The servomotor-driven 2K precision mixing head MK 34 in stainless steel design and with integrated heating function is intended for pressure-monitored, static mixing of the material components for discharge rates from 1.0 to 2.5 g/s, although other discharge rates can also be configured. The mixing head has an optimized installation space which ensures flow-optimized material dosing.

The mixing ratio is infinitely variable from 10:1 to 1:1, but this depends on the pump size and material viscosity. Mixing is carried out by the ME 13/24 static mixer with low back pressure and high flow rate.

The automatic, pressure-controlled material feed to the mixing head is carried out by servo-driven precision eccentric screw pumps in sizes of 8.2 (A-comp.) and 1.8 (B-comp.) ccm/rev. For this purpose, pressure sensors are installed for process monitoring with reduced interference contours.



General description

  • Pressure-monitored and servomotor-driven mixing head (in stainless steel design) for static mixing
  • Designed for flow-optimized material dosing
  • With integrated heating function
  • Pressure sensors before and after the precision eccentric screw pumps for controlling the material feed of the scoop piston pumps of the RAM press
  • Mixing by the ME 13/24 static mixer with low back pressure and high flow rate
  • Additional support tube for pressure safety and prevention of a pulsing ME 13/24 static mixer
  • Min. dosing volume: 20 g
  • Max. dosing volume: container quantity for A and B material component
  • Pressure-controlled separator for interactive, menu-guided calibration function



Technical data 2K Precision Mixing Head MK 34
Dimensions (H x W) 1,113 x 413 mm
Operating pressure max. 30 bar
Application rate from 1.0 to 2.5 g/s, other application rates on request
Dosing accuracy approx. +/- 3 %
Mixing ratio 10:1 to 1:1 infinitely variable
(depending on pump size and material viscosity)
Viscosity processing range from 10,000 to 1,000,000 mPas,
other viscosities on request



Operation and visualisation



Production Menu



Calibration Menu

Maintenance Menu

Alarm Messages

Recipe Setting

Tempering

User Administration



Technichal Data

Control CONCEPT

  • Modular B&R IPC controller with operation and visualization via 15.6“ touchscreen, integrated in the control cabinet. Preparation of an interface for control by a 6-axis robot
  • EMERGENCY STOP function
  • Recipe management
  • Programmable pot life monitoring and dosing quantity preselection
  • Spontaneously available delivery rate adjustment by means of servo drives (depending on the material conveyed)
  • Pressure monitoring of the material components
  • Operator management with password level
  • Digital component working pressure display
  • VPN router for remote services
  • Display language switching German, English, French, Spanish, Italian
  • Wire identification in the control cabinet
  • Voltage adjustment to external voltages
  • 60 Hz version (optional)
CONTROL
  • Speed-adjustable servo drives

  • Drive power: 0.25 kW per servo drive

  • Drive speeds: 1 - 125 rpm

MIXING HEAD
  • MK 34 - pressure-monitored and servo-driven precision mixing head in stainless steel for static mixing. Designed for flow-optimized material dosing, integrated heating function

  • Precision eccentric screw pump of the A comp. in ceramic design, size 8.2 ccm

  • Precision eccentric screw pump rotor of the B comp. is hard chrome-plated, size 1.8 ccm

  • Pressure sensors before and after the precision eccentric screw pumps for controlling the material feed of each of the scoop piston pumps (Ram press)

  • Mixing by the ME 13/24 static mixer with low back pressure and high flow rate

  • Additional support tube for pressure safety and prevention of a pulsing ME13/24 static mixer

  • Min. dosing volume: 20 g

  • Max. dosing volume: container quantity of A and B component

  • Pressure-controlled separator for interactive, menu-guided calibration function

  • Special pumps on request

  • Mixing ratio: 10:1 - 1:1, infinitely variable (depending on pump size and material viscosity)

  • Application rate: from 1.0 to 2.5 g/s, other application rates on request

  • Viscosity processing range: from 10,000 to 1,000,000 mPas, other viscosities on request



MATERIAL PREPARATION / CONVEYING
  • via safety two-post lifter / press (Ram) with two-hand operation
  • with scoop piston pump A comp.: 29:1 and B comp. 13:1, steel version
  • with safety pressure valve, operating pressure between 5 - 7 bar, suitable for 20 l smooth-walled containers, follower plate diameter 280 mm
HOSE PACKAGE
  • A component: steel-reinforced Teflon high-pressure hose (optionally tempered with electrical hose heating)

  • B component: steel-reinforced Teflon high-pressure hose

MATERIAL TEMPERATURE CONTROL
  • Four individually controllable heating circuits: Scoop piston pump, hose package, dosing pump and mixing head incl. support tube (only for the A component)

PNEUMATICS
  • Pneumatics with filter pressure reducer
  • Maintenance unit for supplying the pneumatic consumers
CONNECTION VALUES
  • Electrical system: Version according to EN 60 204-1
  • Mains connection: 120 - 230 V, 50 / 60 Hz
  • Rated power: approx. 1.4 kVA (fully equipped incl. heating)
  • Average consumption: approx. 0.7 kVA
  • Compressed air connection value: 100 - 550 l/min at 6 - 7 bar
QUALITY ASSURANCE
  • Maintenance unit with compressed air supply monitoring
  • Pressure monitoring of the material components
  • Integrated verifiable process scale (with its own interface)
  • Further quality assurance devices can be customer requirements
GENERAL
  • Rollable chassis in shaped tube design, bent sheet metal construction, painted RAL 7035 and RAL 3020
  • Spare parts packages
  • Option: Filling station for 230 ml Semco cartridges for dosing with pneumatic SEMCO Gun 6OZ
DIMENSIONS AND WEIGHT
  • W/L/H approx. 1,200 x 1,438 x 2,267 mm
  • Total weight: approx. 600 kg



Dimensions in mm
